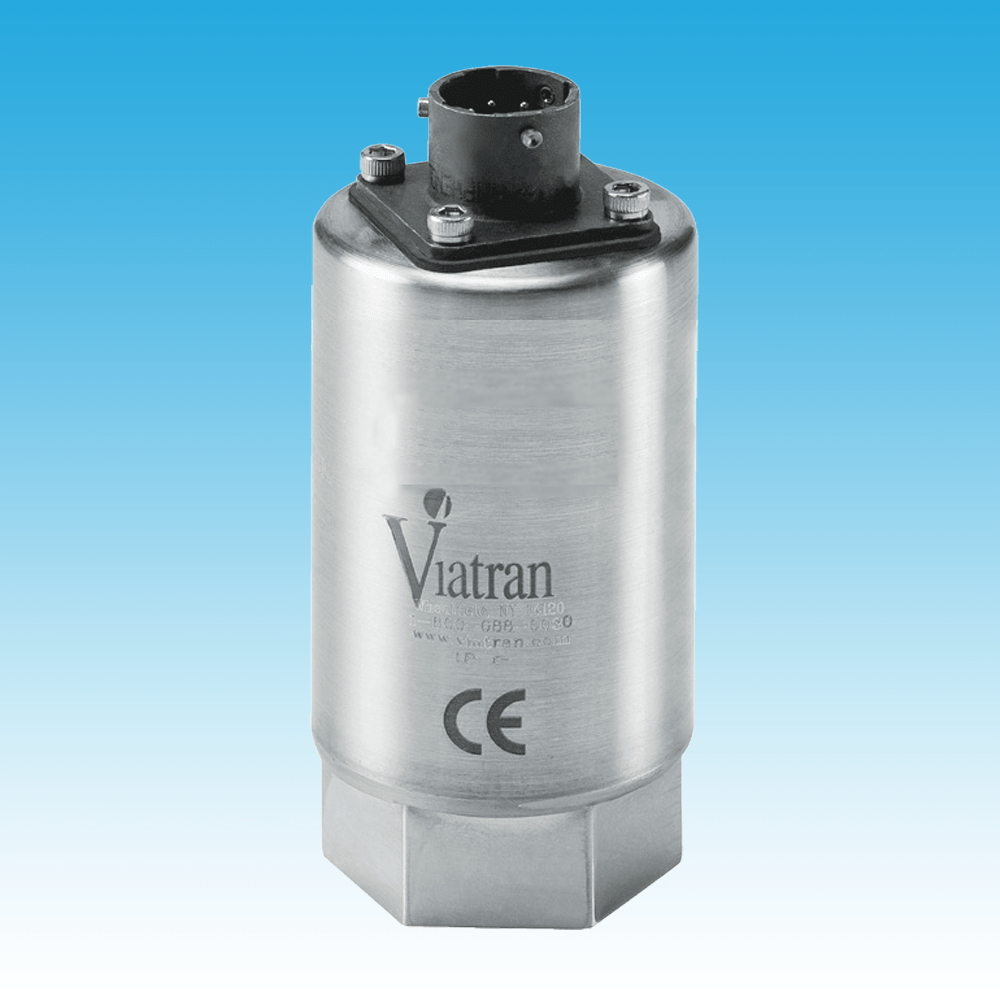

Model 14B Pressure Transducer

3 mv/V output, solid machined diaphragm, 350Ω gages

Product Thumbnail

The solid machined stainless steel diaphragm is designed for applications requiring high frequency pressure cycling and a stable output over the life of the instrument.


Request a Quote

Features

Shunt Calibration circuit option
All Stainless Steel construction


Product Selection


LEGACY APPLICATIONS SUPPORT

Viatran's 14B pressure transducer is specifically designed for early generation Data Acquisition Systems which used external amplifiers. The 14B uses a 350 ohm bridge, which is compatible with legacy amplifiers to make instrumentation switch out fast and easy.

For assistance with selecting the best 14B Model for your application, please contact our Application Engineers.

TYPICAL APPLICATIONS

  • Engine test stands
  • Turbine-Rocket testing
  • Diesel-internal combustion
  • Emission testing
  • Production test stands
  • Transmission testing
  • Off road vehicles
  • Compressors and pumps
  • Stamping Presses
  • Rolling Mills
  • Die Casting
  • Hydraulic usage

Performance
Full Scale Pressure Range
0-100 thru 15,000 PSIG (PSIS FOR ≥ 1500 PSI) (7 thru 1000 bar)
Combined Accuracy (Non-Linearity, HYsteresis, Repeatability)
≤±0.3% FSO
Full Scale Output (FSO)
3.0 mV/V dc at 70°F (21°C) ±1% FSO
Zero and Span Balance
± 1% FSO
Resolution
Infinite
Long Term Stability
≤±0.3% FSO per 6 months
Compensated Temperature Range
70°F to 170°F (21°C to 77°C)
Operating Temperature Range
Process (Media) -40 °F to 250 °F (-40 °C to 121 °C)
Ambient -40 °F to 185 °F (-40 °C to 85 °C)
Storage Temperature Limits
-40°F to 250°F (-40°C to 121°C)
Temperature Effect on Zero
≤±2.0% FSO per 100°F
Temperature Effect on Span
≤±2.0% FSO per 100°F
Electrical
Supply Voltage
10 V dc nominal, 15 V max
Power Supply Regulation
≤±0.01% FSO per volt change over the supply voltage range
Output Signal
3.0 mV/V dc standard
Circuit Protection
Reverse polarity protected. Output may be short circuited indefinitely.
Over voltage protection to 1000 volts according to EN61000-4-5
Insulation Resistance
<5 nSec to case ground
Response Time
<2 mSec to reach 90% of full scale
RFI/EMI Suppression
CE EMC compliant per IEC EN 61326. CE marked.
Electrical Connection
Bendix PT02E-10-6P, mates PT06E-10-6S (SR)
Wire Color Code
Pin A
+Power
Pin B
-Power
Pin C
+Signal
Pin D
-Signal
Pin E
No connection
Pin F
No connection
Materials of Construction
Wetted Parts
15-5 PH Stainless steel
Housing
304L Stainless steel
Weight
10 oz (283 g)
Identification
Pressure sensitive label
Mechanical
Pressure Port
1/4” - 18 NPT female
Proof Pressure
1.5 times range or 20,000 PSI (1400 bar) max
Burst Pressure
3 times range or 35,000 PSI (2400 bar) max
Pressure Cavity
4.5 ml
Mounting
May be supported by process pipin
Options
BF
(K)PTIH-10-6P
BG
DIN 43650
BL
WK6-32S
BN
(K)PTIH-8-4P
BQ
(K)PTO2H-10-6P
BR
CF3102E-14S-6P
DC
Extended Compensated Temperature Range (Cold) -40°F to 170°F (-40°C to 77°C)
DE
Internal shunt calibration
DG
Improved temperature compensation (≤±1.0% FSO per 100°F zero and span shift)
DH
Special ranging
DK
Special calibration setting
DN
Improved linearity (±0.20% FSO)
DQ
Cleaning for oxygen service
DY
mV Booster
EA
Special calibration run
EH
Extended Compensated Temperature Range (Hot) +70°F to 185°F (21°C to 85°C)
LR
Permanent laser mark
NH
Customer specified identification
PW
1/8 DIN digital indicator
Y( )
Multiple pressure ports available. Consult factory
ZU
Direct cable (175°F max temp) (79°C)
