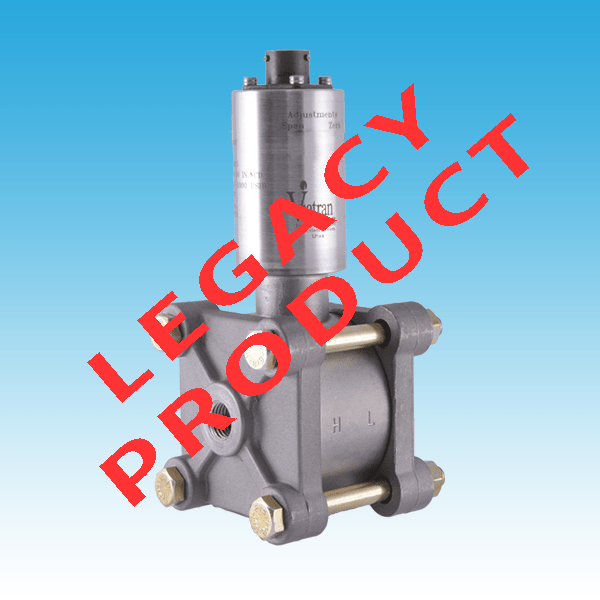

Model 177 Low Range Pressure Transmitter

Legacy Product

Product Thumbnail

Viatran’s “77” Series differential pressure transmitters are no longer available. Please consult our Application Engineers to determine the best replacement.


Request a Quote for Recommended Replacement



The Model 177 Low Range transmitter measures pressure ranges from 0-3" W.C. to 0-8" W.C. and provides a 3.0 mV/Vdc signal. All wetted surfaces, including flanges and diaphragms, are constructed of 316 stainless steel with a sealing Viton® O-Ring for excellent corrosion resistance. A standard 500 PSI static line pressure and single side overpressure rating are featured with these transmitters. .

Viatran’s “77” Series differential pressure transmitters are no longer available.
Please consult our Application Engineers to determine the best replacement.



All information on this page was current when this product was discontinued.

Performance
Full Scale Pressure Ranges (FSPR)
0-3", 0-8" W.C.
Combined Accuracy (Non-Linearity (BFSL), Hysteresis & Repeatability)
≤±0.60% RSS
Full Scale Output (FSO)
3.0 mV/V dc at 70°F (21°C) ±2% FSO
Resolution
Infinite
Zero Shift w/Line Pressure (%FSO/500 PSI)
≤± 2%
Zero Shift After 500 PSI Overload
Single Side: ≤± 0.5% FSO
Alternate Sides: ≤±0.5% FSO
Compensated Temperature Range
70°F to 170°F (21°C to 77°C)
Operating Temperature Range
0° F to +185° F (-20°C to 85°C)
Storage Temperature Range
-40°F to +185°F (-40°C to 85°C)
Thermal Effect on Zero
≤ 2.0% FSO per 100° F
Thermal Effect on Span
≤ 2.0% FSO per 100° F
Electrical
Supply Voltage
5 to 15 Vdc
Power Supply Regulation
<±.01% FSO per Volt (Typical)
Output Signal
3.0 mV/Vdc
Output Loading
3000 Ohms minimum
Current Draw
3.8 mAdc
Range Calibration Signal
80% FSO, by shorting pins E & F
Calibration Signal Accuracy
≤± 1.0%
Circuit Protection
Reverse polarity protected
Insulation Resistance
< 5 nS to case ground
Standard Electrical Connection
Mates with 6 pin, Hermetic, Box Mount, Shell Size 10, MIL-C-26482 bendix type connector
Pin Outs
Pin A + Power
Pin B - Power
Pin C + Signal
Pin D - Signal
Pin E Shunt Cal
Pin F Shunt Cal
Mechanical
Pressure Connection
1/4" NPT female
Line Pressure
500 PSI maximum
Proof Pressure
500 PSI single sided
Burst Pressure
1,100 PSI
Diaphragm Displacement
≈0.1 mL at FSPR
Pressure Cavity Volume
0.4 cubic inches
Mounting
May be supported by process piping or by optional mounting bracket
Response Time
Consult Engineering
Materials of Construction
Wetted Parts
316 Stainless steel and Viton® O-Ring
Enclosure Material
304 and 316 Stainless Steel
Identification
Laser marked on body of unit
Weight
3.5 lbs.
Options
ELECTRICAL CONNECTION
B ( )
Alternate electrical connector
PERFORMANCE OPTIONS
DG
Improved temperature compensation
DH
Special range
DK
Special calibration setting
DW
No external adjustments
EA
Special calibration run
GE
Buna 'N' O-Rings
NH
Customer specific identification
PW
Calibration of Meter w/Viatran unit
ALTERNATE PRESSURE PORTS
Y ( )
Alternate pressure ports
Alternate electrical connector
Note:
Application of some available options may affect standard performance. Consult your Viatran representative for details.
