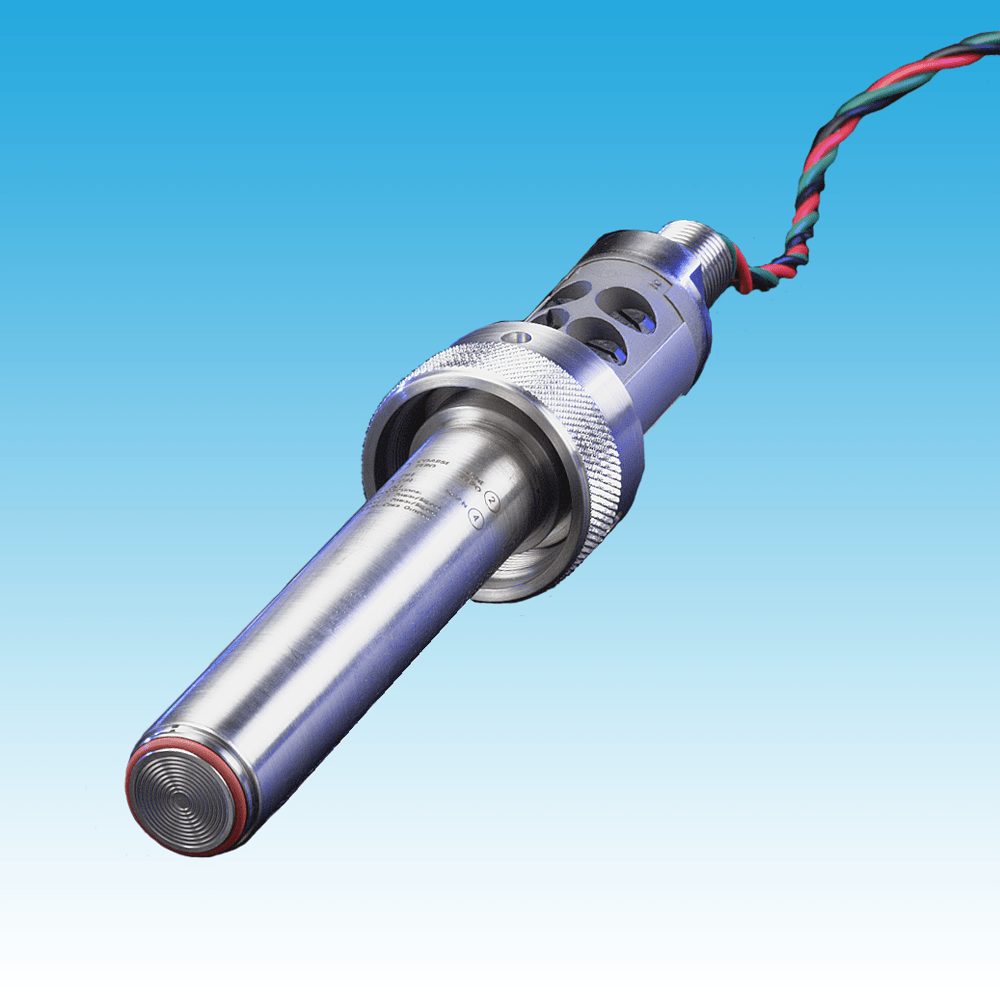

Model 359 Sanitary Level Transmitter
Legacy Products
This model is no longer available with no replacement part
359 is designed for 3A sanitary clean in place applications. 359 comes standard with Hastelloy wetted parts, providing excellent corrosion resistance to caustic materials. 359 has sealed external adjustments and capable of being ranged down if lower range measurements are required.
Features
Many Options available
ShuntCal
Low Pressure Applications
Performance
Full Scale Pressure Range (FSPR)
0-100", 300", 750", 900" WC
Combined Accuracy (Non-Linearity, Hysteresis, Repeatability)
≤±.2% FSO
Full Scale output (FSO)
16 mA
Resolution
Infinite
Long Term Stability
≤±0.25% FSO per 6 months
Response Time
(Mechanical and Electrical combined)
≤10 mSec to reach 90% FSO
Thermal recovery time
50 Sec to reach 90% FSO
Temperature Effect on Zero
≤±1.5% FSO per 100°F
Temperature Effect on Span
≤±1.5% FSO per 100°F
Temperature Effect on Calibration Signal
≤±2.0% FSO per 100°F
Compensated Temperature Range
35°F to 170°F
Process Temperature Limits
-20°F to 220°F
High Temperature Option
-20°F to 300°F at 70° ambient temperature
Ambient Temperature Limits
-40°F to 250°F
Electrical
Sensor Technology
Silicon Piezoerestictive
Supply Voltage
9 to 30 VDC
Power Supply Regulation
≤±0.01% FSO per volt
Output Signal
4 to 20 mA
Load Impedance
1500 Ohms max at 40 VDC
Zero Balance
4 mA ±1% FSO
Zero Adjustment
-100% FSPR (Elevation) to 80% FSPR (Suppression). Coarse and fine adjustments standard
Span
20 mA ±1% FSO
Span Adjustment
3:1 Ranging
Range Calibration Signal
30% of FSPR , externally switched
Calibration Signal Accuracy
<±0.2% FSO. The exact signal to pressure correlation is provided with each unit.
Circuit Protection
Varistor protected across the input leads for surges above 55V and currents to 250 Amps peak with a pulse width of 8 to 20 µsec. Reverse polarity protected.
Insulation Resistance
> 200 MegOhms to case ground
RFI/EMI Suppression
Negligible effect to 500 Mhz at 5 watts direct contact
Electrical Connection
1/2" NPT (M), 3 wires, 18 AWG, 36" Length
Wiring Color
Red
+Signal
Black
-Signal
Green
Case Ground
Mechanical
Pressure Connection
Flush mount sensor mates with
Proof Pressure
2x rated range
Burst Pressure
3x rated range
Oil Fill
Less than 0.66 ml of DC 200 silicone oil
Measured Fluids
Any gas or liquid compatible with Hastelloy C-276 steel and silicone O-Ring
Weight
4 lbs. nominal
Enclosure Materials
316L stainless sleel
Wetted Materials
Hastelloy C-276
Identification
Laser etched onto body
Options
HD
Short length for single wall tanks
HE
Extra long length for King Receiver #1777-3
GA
Viton O-Ring
GB
Teflon O-Ring
GE
Buna-N O-Ring
NSR
Non Standard Ranging
Accessories
Mounting Bracket
Conduit Connection Box
Loop Powered Digital Indicator
Protective Cover
Model 359 Sanitary Level Transmitter
Model 359 Sanitary Level Transmitter
Legacy Products
This model is no longer available with no replacement part
359 is designed for 3A sanitary clean in place applications. 359 comes standard with Hastelloy wetted parts, providing excellent corrosion resistance to caustic materials. 359 has sealed external adjustments and capable of being ranged down if lower range measurements are required.
Performance
Full Scale Pressure Range (FSPR)
0-100", 300", 750", 900" WC
Combined Accuracy (Non-Linearity, Hysteresis, Repeatability)
≤±.2% FSO
Full Scale output (FSO)
16 mA
Resolution
Infinite
Long Term Stability
≤±0.25% FSO per 6 months
Response Time
(Mechanical and Electrical combined)
≤10 mSec to reach 90% FSO
Thermal recovery time
50 Sec to reach 90% FSO
Temperature Effect on Zero
≤±1.5% FSO per 100°F
Temperature Effect on Span
≤±1.5% FSO per 100°F
Temperature Effect on Calibration Signal
≤±2.0% FSO per 100°F
Compensated Temperature Range
35°F to 170°F
Process Temperature Limits
-20°F to 220°F
High Temperature Option
-20°F to 300°F at 70° ambient temperature
Ambient Temperature Limits
-40°F to 250°F
Electrical
Sensor Technology
Silicon Piezoerestictive
Supply Voltage
9 to 30 VDC
Power Supply Regulation
≤±0.01% FSO per volt
Output Signal
4 to 20 mA
Load Impedance
1500 Ohms max at 40 VDC
Zero Balance
4 mA ±1% FSO
Zero Adjustment
-100% FSPR (Elevation) to 80% FSPR (Suppression). Coarse and fine adjustments standard
Span
20 mA ±1% FSO
Span Adjustment
3:1 Ranging
Range Calibration Signal
30% of FSPR , externally switched
Calibration Signal Accuracy
<±0.2% FSO. The exact signal to pressure correlation is provided with each unit.
Circuit Protection
Varistor protected across the input leads for surges above 55V and currents to 250 Amps peak with a pulse width of 8 to 20 µsec. Reverse polarity protected.
Insulation Resistance
> 200 MegOhms to case ground
RFI/EMI Suppression
Negligible effect to 500 Mhz at 5 watts direct contact
Electrical Connection
1/2" NPT (M), 3 wires, 18 AWG, 36" Length
Wiring Color
Red
+Signal
Black
-Signal
Green
Case Ground
Model 359 Sanitary Level Transmitter
Many Options available
ShuntCal
Low Pressure Applications
Mechanical
Pressure Connection
Flush mount sensor mates with
Proof Pressure
2x rated range
Burst Pressure
3x rated range
Oil Fill
Less than 0.66 ml of DC 200 silicone oil
Measured Fluids
Any gas or liquid compatible with Hastelloy C-276 steel and silicone O-Ring
Weight
4 lbs. nominal
Enclosure Materials
316L stainless sleel
Wetted Materials
Hastelloy C-276
Identification
Laser etched onto body
Options
HD
Short length for single wall tanks
HE
Extra long length for King Receiver #1777-3
GA
Viton O-Ring
GB
Teflon O-Ring
GE
Buna-N O-Ring
NSR
Non Standard Ranging
