Model 574 Pressure Transmitter

Low Range Differential Pressure, Hazardous Location Approval

Product Thumbnail

Viatran’s 574 Series differential pressure transmitters are extremely accurate and durable units, designed specifically for test applications. 574 comes with hazardous location option and has sealed external zero and span adjustments. The variable capacitance sensing technology provides extremely high overpressure protection, and long range stability, as well as high accuracy of 0.15% BFSL.


Request a Quote

Features

High Accuracy
Many Options available
ShuntCal
Low Pressure Applications

Resources

Download Data Sheet Manual Approvals & Certificates

Viatran’s Model 574 differential pressure transmitter employs variable capacitance sensing technology for extreme reliability and high accuracy. The 574 measures pressures from 5” WC to 100 PSI with over pressure protection to 3000 PSI. The all welded 316 stainless steel construction allows the airtight and watertight 574 to be in corrosive environments, including salt air or caustic solutions.

External zero, span and calibration controls are hermetically sealed, yet are easily adjusted with Viatran’s magnetically coupled drive system. The signal conditioner in the 574 allows for 5:1 ranging of the transmitter’s
standard pressure range.

Performance
Full Scale Pressure Ranges
0-5, 10, 20, 50, 100, 300, 750" W.C.D.
0-15, 50, 100 PSID
Nonlinearity (Best Fit Straight Line)
≤±0.15% FSO
Hysteresis
≤±0.1% FSO
Repeatability
≤ ±0.1% FSO
Full Scale Output (FSO)
16 mA at 70° F (21°C)
Resolution
Infinite
Long Term Stability
≤±0.1% FSO per 6 months
Zero Shift with Base Pressure
≤±2.0% FSO per 1000 PSI
Span Shift with Base Pressure
≤±1.0% FSO per 1000 PSI
Zero Shift After 3000 PSI Overload
Side Angle: ≤± 0.1% FSO
Alternate Angle: ≤±0.5% FSO
Compensated Temperature Range
70°F to 170°F
Operating Temperature Range
5"WC to 50"WC 0° F to +170° F
100"WC to 100 PSI -40° F to +170° F
Storage Temperature Limits
5"WC to 50"WC 0° F to +170° F
100"WC to 100 PSI -40° F to +170° F
Temperature Effect on Zero
≤± 1.0% FSO per 100° F
Temperature Effect on Span
≤± 1.0% FSO per 100° F
Electrical
Supply Voltage
10 to 40 Vdc
Power Supply Regulation
≤±0.02% FSO per volt over supply voltage range
Output Signal
4 to 20 mA
Load Impedance
1500 Ohms maximum at 40 Vdc
Zero Adjustment
-100% FSO elevation to +50% FSO suppression of the standard range
Span Adjustment
Rangeable down, 5:1 from standard range
Calibration Signal
20% of FSPR externally switched
Calibration Signal Accuracy
≤±1% of the stated value
Circuit Protection
Varistor protected across the input leads for surges above 40V and currents to 250 Amps peak with a pulse width of 8 x 20 µSec. Reverse polarity protected
Insulation Resistance
>1000 MegOhms to case ground at 40 Vdc and 70° F
Response Time
10% to 90% FS Faster response available with NF option.
Electrical Connection
1/2” NPT male, 3 wires, 18 AWG
Wire Codes
RED + Signal / Power
BLACK - Signal / Power
GREEN Case Ground
Mechanical
Pressure Connection
1/4” NPT female on 2-1/8” centers on flanges
1/2” NPT female on 2”, 2-1/8” or 2-1/4” centers with optional adapters
Proof Pressure
3000 PSID and/or 2000 PSI base pressure
Burst Pressure
4500 PSID and/or 4500 PSI base pressure
Diaphragm Displacement
0.002 cubic inches at FSPR
Fill Fluid
Dow DC200 Silicone oil
Mounting
May be supported by process piping or by optional mounting bracket
Materials of Construction
Housing
316 Stainless Steel
Wetted Parts
316 Stainless steel and Viton O-Ring
Weight
7 lbs.
Identification
Laser etched onto body
Options
PERFORMANCE OPTIONS
DG
Improved temperature compensation to ±1.0% FSO per 100°F
DJ
Submersible connector w/8’ cable
DK
Special shunt calibration setting
DQ
Cleaning for oxygen service
EA
Special calibration run
GE
Buna 'N' O-Rings
JJ
Loop powered direct mount indicator with explosion proof housing
NF
Fast response time
NH
Customer specified identification
PW
1/8 DIN digital indicator
QC
Hastelloy wetted parts
NSR
Non standard range
ALTERNATE PRESSURE PORTS
YL
1/4” NPT (F) square flange
YQ
1/8” NPT (F) square flange
APPROVAL & CERTIFICATE OPTIONS
FA
Russian Metrology Certificate
MD
FM Intrinsically Safe
ME
CSA Explosion Proof
Note:
Application of some available options may affect standard performance. Consult your Viatran representative for details.

You may also consider...

Product Thumbnail

DL Series - Dual-Line Analog Input Process Meter
Product Thumbnail

Model 548 Pressure Transmitter
Product Thumbnail

Mounting Brackets
Product Thumbnail

Cable Assemblies
Product Thumbnail

Mating Connectors

Model 574 Pressure Transmitter

Product Thumbnail

Model 574 Pressure Transmitter

Low Range Differential Pressure, Hazardous Location Approval

Viatran’s 574 Series differential pressure transmitters are extremely accurate and durable units, designed specifically for test applications. 574 comes with hazardous location option and has sealed external zero and span adjustments. The variable capacitance sensing technology provides extremely high overpressure protection, and long range stability, as well as high accuracy of 0.15% BFSL.


Request a Quote

Performance
Full Scale Pressure Ranges
0-5, 10, 20, 50, 100, 300, 750" W.C.D.
0-15, 50, 100 PSID
Nonlinearity (Best Fit Straight Line)
≤±0.15% FSO
Hysteresis
≤±0.1% FSO
Repeatability
≤ ±0.1% FSO
Full Scale Output (FSO)
16 mA at 70° F (21°C)
Resolution
Infinite
Long Term Stability
≤±0.1% FSO per 6 months
Zero Shift with Base Pressure
≤±2.0% FSO per 1000 PSI
Span Shift with Base Pressure
≤±1.0% FSO per 1000 PSI
Zero Shift After 3000 PSI Overload
Side Angle: ≤± 0.1% FSO
Alternate Angle: ≤±0.5% FSO
Compensated Temperature Range
70°F to 170°F
Operating Temperature Range
5"WC to 50"WC 0° F to +170° F
100"WC to 100 PSI -40° F to +170° F
Storage Temperature Limits
5"WC to 50"WC 0° F to +170° F
100"WC to 100 PSI -40° F to +170° F
Temperature Effect on Zero
≤± 1.0% FSO per 100° F
Temperature Effect on Span
≤± 1.0% FSO per 100° F

Electrical
Supply Voltage
10 to 40 Vdc
Power Supply Regulation
≤±0.02% FSO per volt over supply voltage range
Output Signal
4 to 20 mA
Load Impedance
1500 Ohms maximum at 40 Vdc
Zero Adjustment
-100% FSO elevation to +50% FSO suppression of the standard range
Span Adjustment
Rangeable down, 5:1 from standard range
Calibration Signal
20% of FSPR externally switched
Calibration Signal Accuracy
≤±1% of the stated value
Circuit Protection
Varistor protected across the input leads for surges above 40V and currents to 250 Amps peak with a pulse width of 8 x 20 µSec. Reverse polarity protected
Insulation Resistance
>1000 MegOhms to case ground at 40 Vdc and 70° F
Response Time
10% to 90% FS Faster response available with NF option.
Electrical Connection
1/2” NPT male, 3 wires, 18 AWG
Wire Codes
RED + Signal / Power
BLACK - Signal / Power
GREEN Case Ground

Model 574 Pressure Transmitter

High Accuracy
Many Options available
ShuntCal
Low Pressure Applications

Viatran’s Model 574 differential pressure transmitter employs variable capacitance sensing technology for extreme reliability and high accuracy. The 574 measures pressures from 5” WC to 100 PSI with over pressure protection to 3000 PSI. The all welded 316 stainless steel construction allows the airtight and watertight 574 to be in corrosive environments, including salt air or caustic solutions.

External zero, span and calibration controls are hermetically sealed, yet are easily adjusted with Viatran’s magnetically coupled drive system. The signal conditioner in the 574 allows for 5:1 ranging of the transmitter’s
standard pressure range.

Mechanical
Pressure Connection
1/4” NPT female on 2-1/8” centers on flanges
1/2” NPT female on 2”, 2-1/8” or 2-1/4” centers with optional adapters
Proof Pressure
3000 PSID and/or 2000 PSI base pressure
Burst Pressure
4500 PSID and/or 4500 PSI base pressure
Diaphragm Displacement
0.002 cubic inches at FSPR
Fill Fluid
Dow DC200 Silicone oil
Mounting
May be supported by process piping or by optional mounting bracket

Materials of Construction
Housing
316 Stainless Steel
Wetted Parts
316 Stainless steel and Viton O-Ring
Weight
7 lbs.
Identification
Laser etched onto body

Options
PERFORMANCE OPTIONS
DG
Improved temperature compensation to ±1.0% FSO per 100°F
DJ
Submersible connector w/8’ cable
DK
Special shunt calibration setting
DQ
Cleaning for oxygen service
EA
Special calibration run
GE
Buna 'N' O-Rings
JJ
Loop powered direct mount indicator with explosion proof housing
NF
Fast response time
NH
Customer specified identification
PW
1/8 DIN digital indicator
QC
Hastelloy wetted parts
NSR
Non standard range
ALTERNATE PRESSURE PORTS
YL
1/4” NPT (F) square flange
YQ
1/8” NPT (F) square flange
APPROVAL & CERTIFICATE OPTIONS
FA
Russian Metrology Certificate
MD
FM Intrinsically Safe
ME
CSA Explosion Proof
Note:
Application of some available options may affect standard performance. Consult your Viatran representative for details.

Model 574 Pressure Transmitter

Model 574 Pressure Transmitter

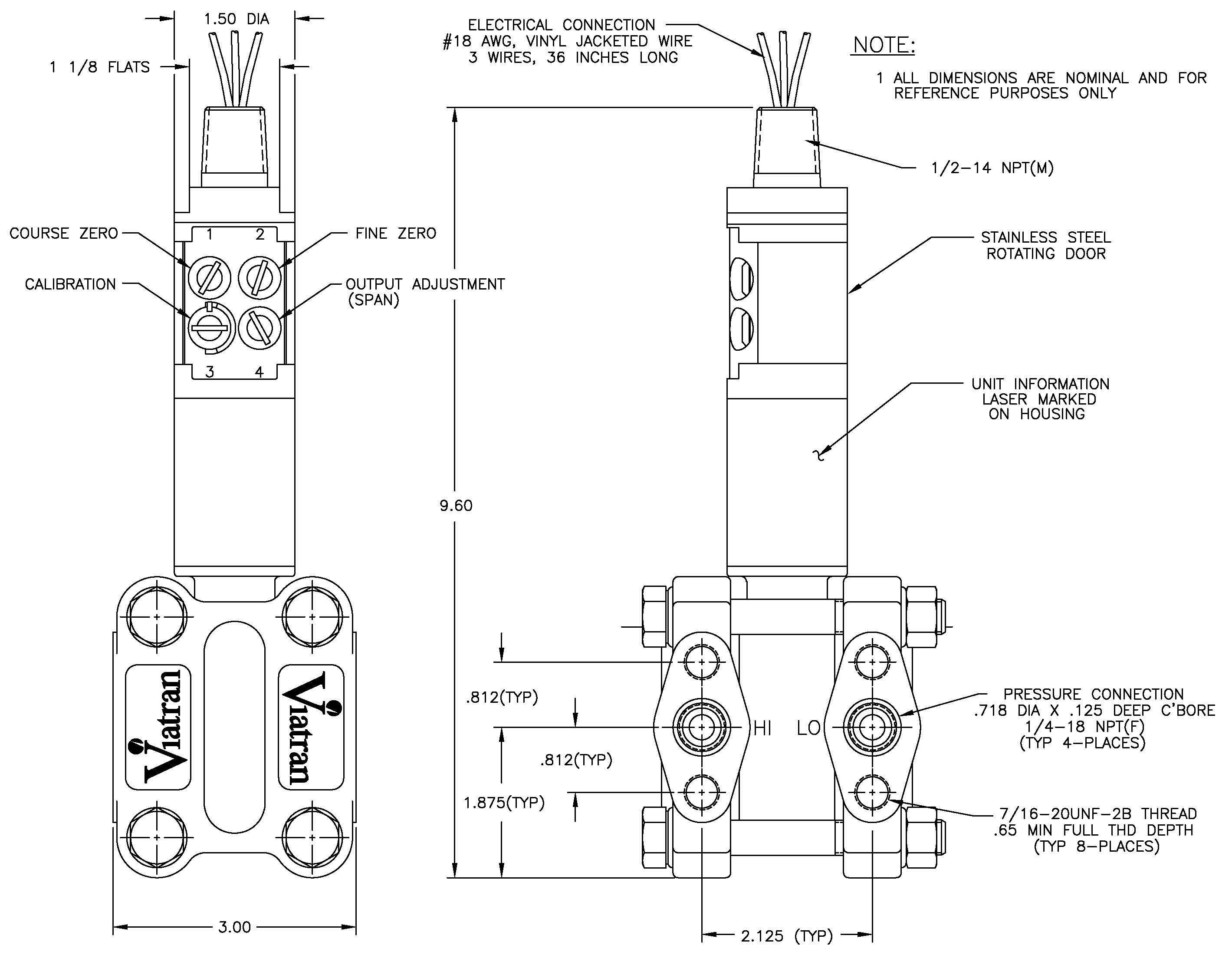

Blueprint Image
