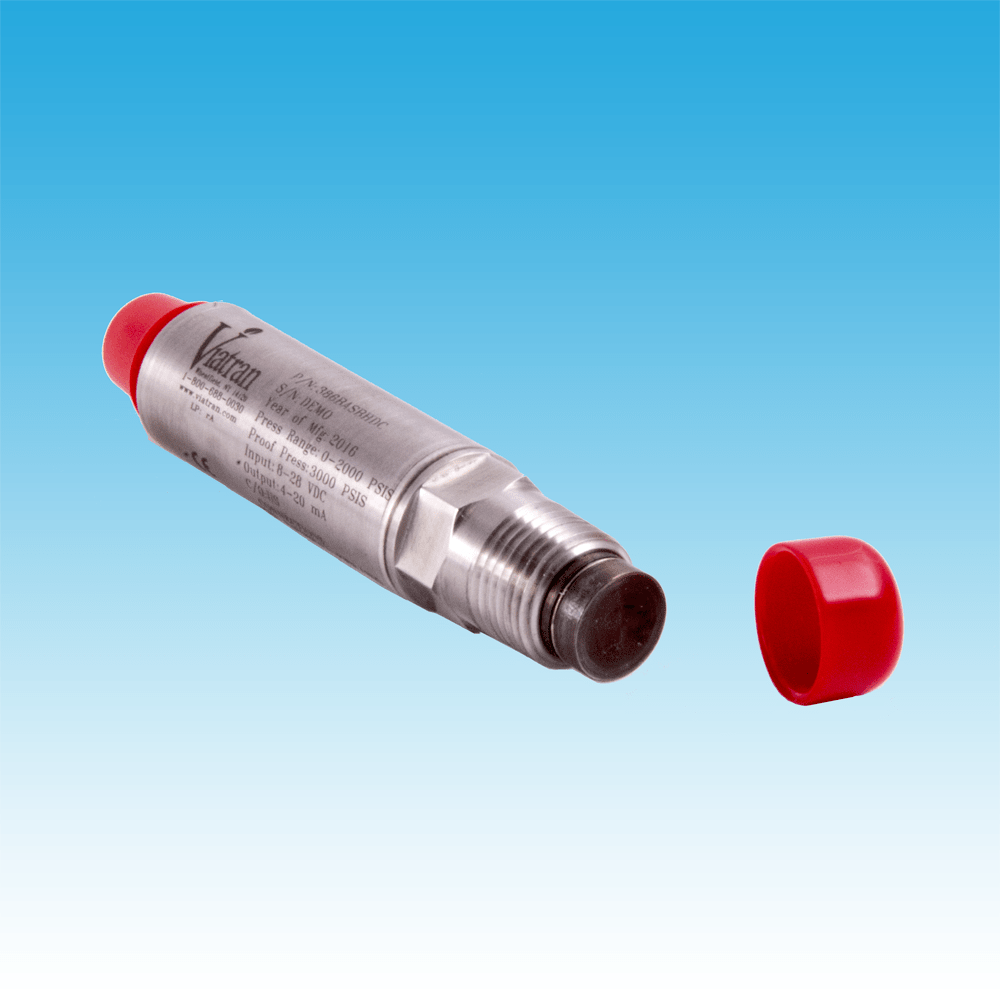

Model 386 Pressure Transmitter

4-20mA output, 150 - 10K PSI

Product Thumbnail

The Model 386 Flush Tip – Zero Cavity design offers an Isolated sensor assembly that virtually eliminates installation torque effect and is able to withstand pressure spikes up to 1.5x proof pressure and 5x burst pressure (or 30,000 PSI, whichever is less).


Request a Quote

Features

Shunt Calibration circuit option
All Stainless Steel construction
RoHS Compliant


Product Selection


PERFORMANCE
Full Scale Pressure Ranges
0-100, 150, 160, 200, 300, 500, 750, 1000, 1500, 2000, 3000, 5000, 7500, 10,000 PSIG / PSIS
Static Error Band
≤±0.5% FSO (Includes BFSL, Hysteresis and Repeatability by RSS)
Compensated Temperature Range
70°F to 170°F (21°C to 77°C)
Operating Temperature Range
-40°F to 185°F (-40°C to 85°C)
Storage Temperature Range
-40°F to 250°F (-40°C to 120°C)
Long Term Stability (%FSO)
≤±0.25% FSO per 6 months
Thermal Effect on Zero
≤±2% FSO per 100°F Typical
Thermal Effect on Span
≤±2% FSO per 100°F Typical
ELECTRICAL
Output Signal
4-20 mA
Supply Voltage
8-28 Vdc
Power Supply Regulation
<±.05% FSO per volt
Load Impedance
926 Ohms maximum at 28 volts DC
Circuit Protection
Reverse polarity protected, CE marked
RFI / EMI
CE EMC compliant as per IEC EN 61326-1 and EN 61326-2-3 Annex BB
Voltage Spike Protection
Withstand 1000 volt spike per EN 61000-4-5
Insulation Resistance
<5 nS
Response Time
<2 mSec for 10-90% of final value
Electrical Connection
Bendix PT02E-10-6P, mates PT06E-10-6S (SR) (BH option)
Pin Outs
Pin A + Power / Signal
Pin B - Power / Signal
Pin C No connection
Pin D No connection
Pin E AC Ground
Pin F No connection
Shell Case Ground
MECHANICAL
Standard Pressure Port
1/2" NPT (M)
Zero Effect from Installation
<±0.10% at 25 to 50 ft lbs
Proof Pressure
1.5x
Burst Pressure
5X (or 30,000 PSI, whichever is less)
MATERIALS OF CONSTRUCTION
Wetted Materials
15-5 PH and 304L Stainless Steel (Inconel 718 optional)
Weight
8 oz. nominal
OPTIONS
PRESSURE RANGES
AM: 0-100 PSI
AN: 0-150 PSI
CA: 0-160 PSI
AP: 0-200 PSI
AR: 0-300 PSI
AU: 0-500 PSI
AW 0-750 PSI
AY: 0-1,000 PSI
AZ 0-1,500 PSI
BA 0-2,000 PSI
BC 0-3,000 PSI
BF 0-5,000 PSI
BH 0-7,500 PSI
BM 0-10,000 PSI
ALTERNATE ELECTRICAL CONNECTIONS
BH Welded - 6 Pin bayonet shell size 10
ZE Welded - 4 Pin Hermetic,shell size 14S, (MIL-DTL-5015H)
ZU Welded- Direct Coupled Cable
PRESSURE CONNECTION
VQ 3/4"-16 UNF (M) (Includes Std Nitrile / NBR "O" ring)
VR G 1/2" (M) (Includes Std Nitrile / NBR ED Seal according to DIN 3869)
Performance Options
DA Isolated Internal Shunt Cal at 80% Full Scale
DC Extended Temperature Range (Cold) -40°F to 170°F (-40°C to 77°C)
DG Improved Temperature Compensation to ± 1° FSO shift per 100°F
DH Special Range
DN Improved Non-linearity
EA Special Calibration Run
EH
Extended Temperature Range (Hot) +70°F to 185°F (21°C to 85°C) Extended Temperature Range (Hot) +70°F to 185°F (21°C to 85°C)
GA "O" Ring or ED Seal- VITON® / FKM material
GD "O" Ring - EPDM material (not available with "VR" option)
NH Customer Specified Identification
PW 1/8 DIN Digital Indicator
QK Inconel 718 - for all wetted parts (minimum range is 0-150 PSI)

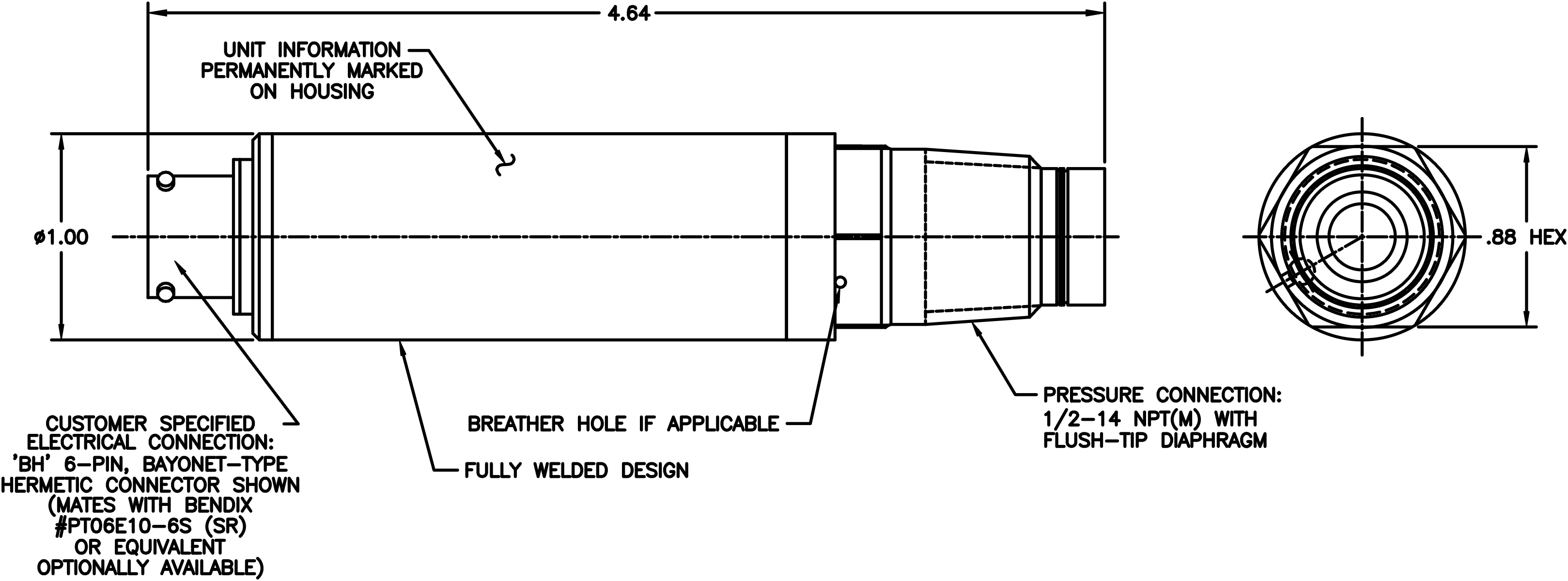

Dimensional Data
