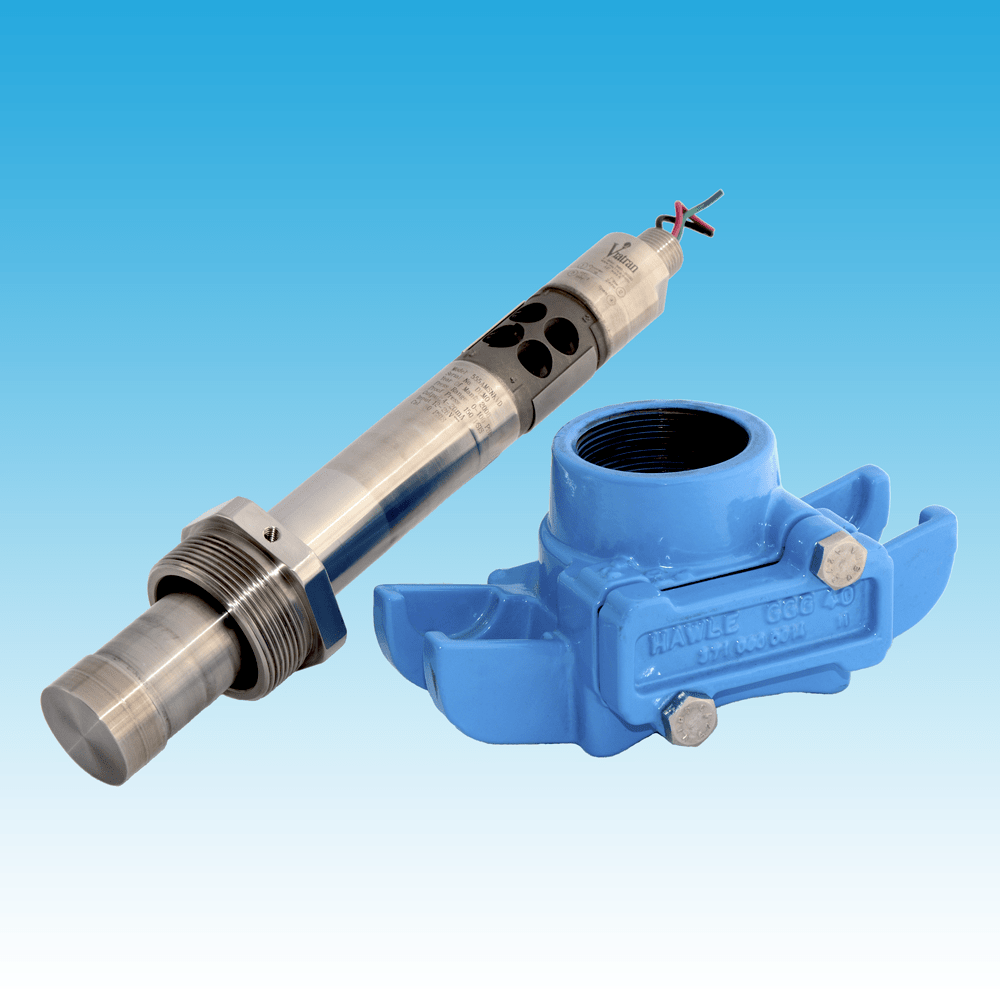

Model 555 Pressure Transmitter

Integral Shutoff for inline installation, Slurry and Sludge measurement

Product Thumbnail

Designed for harsh abrasive slurry, the 555 has a unique feature which allows for wet installation in less than an hour through the use of a pipe saddle with integral shutoff. External adjustments and corrosive resistant wetted materials make this an excellent choice for pulp and paper, waste water processing, slurry and sludge measurements.


Request a Quote

Features

ShuntCal
All Stainless Steel construction


Product Selection


Performance
Full Scale Pressure Range (FSPR)
0-50, 100, 150, 200, 250, 300, 500, PSIS
Combined Accuracy
(Non-Linearity, Hysteresis and repeatability)
50 - 100 PSI ≤±.5% FSO
150 - 500 PSI ≤±.3% FSO
Full Scale Output (FSO)
16 mA at 70°F (21°C)
Resolution
Infinite
Long Term Stability
≤±0.5% FSO per 6 months
Pressure Connection Effect Zero Balance
≤±1% FSO
Response Time
(Mechanical & Eletrical Combined)
<20 mSec to reach 90% of Full Scale
Temperature Effect on Zero
±1% FSO per 100°F (37°C)
Temperature Effect on Span
±1% FSO per 100°F (37°C)
Combined at 4:1 Range Down
≤±4.0% FSO per 100°F (37°C)
Compensated Teperature Range
70°F to 170°F (21°C to 77°C)
Maximum Operating Temperature
185°F (85°C) - Ambient
250°F (121°C) - Fluid
Minimum Operating Temperature
-40°F (-40°C)
Storage Temperature Limits
-65°F to 250°F (-53°C to 121°C)
Electrical
Supply Voltage
12 to 30 Vdc
Power Consumption
≤±0.02% FSO per volt
Output Signal
4-20 mA at 70°F (21°C)
Load Impedance
900 Ohms maximum at 30 Vdc
Elevation
-100% of FSO
Suppression
+50% of FSO
Span Adjustment
Rangeable down 4:1 from standard range
Range Calibration Signal
20% of FSPR externally switched
Calibration Signal Accuracy
±1.0% FSO. The exact signal to pressure correlation is provided with each unit
Circuit Protection
Varistor protected across the input leads for surges above 40V and currents to 250 Amps Peak with a pulse width of 20 µSec. Reverse polarity protected
Bridge Resistance
5K Ohms nominal
Insulation Resistance
≥200 MegOhms to case ground (≤5 nS)
RFI/EMI
Negligible to 500 MHz at 5 Watts direct contact
Electrical Connection
1/2” NPT (M), 18 AWG, 72”
Wire Color Codes
Red
+Power/Signal
Black
-Power/Signal
Green
Case Ground
Mechanical
Pressure Connection
100 - 1000 PSI Flush Diaphragm
Proof Pressure
1.5 times URL
Burst Pressure
≥ 3 times rated URL
Shock Limitation
100 g's
Weight
70 oz (2kg)
Materials of Construction
Enclosure Materials
Inconel X750 and 316L stainless steel
Wetted Materials
Inconel X750 and 316L stainless steel
Enclosure Classification
NEMA/Type 4X (1P68)
Certifications
FM
Intrinsic Safety: Class I, II, III, Division 1, Groups A-G, and AEx ia IIC, T4 at Ta=80ºC, T5 at Ta=40ºC, Indoor and Outdoor NEMA/Type 4X Hazardous Locations
Nonincendive: Class I,II,III Div. 2, Groups A-G and Class I, Zone 2, Group IIC, T4 at Ta=80ºC, T5 at Ta=40ºC
CSA (Pending)
Intrinsic Safety: Class I, Div. 1, A-D Class II, E-G, Class III, Ex ia IIC T4 at Ta=80ºC, T5 at Ta=40ºC
ATEX
Intrinsic Safety: II 1 G EEx ia IIC, -20ºC T4, Ta 50ºC
CE
EMC Directive 89/336/EEC and Low Voltage Directive 72/23/EEC
EN 61010-101993/A2:1995: Low Voltage Standard
EN 61326: EMC Conformity Standard
PED Directive 97/23/EC EMC Directive 89/336/EEC
Options
BB
Mini change electrical connector
BP
Micro change electrical connector
CL
Extra lead length (6 ft standard)
DG
Improved temperature and compensation
DK
Special shunt calibration
EA
Special calibration run
NG
ATEX Flameproof label
NH
Customer specified identification
NJ
CE label
NK
ATEX Intrinsic Safety label
NSR
Non standard range
NX
CSA Intrinsic Safety label
NZ
FM Nonincendive label
TF
FM Intrinsic Safety label
TJ
CSA Div / Zone 2
TW
Russia Intrinsic Safety
VD
G2” retaining nut
Z ()
Alternate electrical connection
ZU
irect coupled cable
Accessories
Pipe Saddle with shutoff
Conduit connection box
Calibration text fixture

Model 555 Pressure Transmitter

Product Thumbnail

Model 555 Pressure Transmitter

Integral Shutoff for inline installation, Slurry and Sludge measurement

Designed for harsh abrasive slurry, the 555 has a unique feature which allows for wet installation in less than an hour through the use of a pipe saddle with integral shutoff. External adjustments and corrosive resistant wetted materials make this an excellent choice for pulp and paper, waste water processing, slurry and sludge measurements.


Request a Quote

Performance
Full Scale Pressure Range (FSPR)
0-50, 100, 150, 200, 250, 300, 500, PSIS
Combined Accuracy
(Non-Linearity, Hysteresis and repeatability)
50 - 100 PSI ≤±.5% FSO
150 - 500 PSI ≤±.3% FSO
Full Scale Output (FSO)
16 mA at 70°F (21°C)
Resolution
Infinite
Long Term Stability
≤±0.5% FSO per 6 months
Pressure Connection Effect Zero Balance
≤±1% FSO
Response Time
(Mechanical & Eletrical Combined)
<20 mSec to reach 90% of Full Scale
Temperature Effect on Zero
±1% FSO per 100°F (37°C)
Temperature Effect on Span
±1% FSO per 100°F (37°C)
Combined at 4:1 Range Down
≤±4.0% FSO per 100°F (37°C)
Compensated Teperature Range
70°F to 170°F (21°C to 77°C)
Maximum Operating Temperature
185°F (85°C) - Ambient
250°F (121°C) - Fluid
Minimum Operating Temperature
-40°F (-40°C)
Storage Temperature Limits
-65°F to 250°F (-53°C to 121°C)

Electrical
Supply Voltage
12 to 30 Vdc
Power Consumption
≤±0.02% FSO per volt
Output Signal
4-20 mA at 70°F (21°C)
Load Impedance
900 Ohms maximum at 30 Vdc
Elevation
-100% of FSO
Suppression
+50% of FSO
Span Adjustment
Rangeable down 4:1 from standard range
Range Calibration Signal
20% of FSPR externally switched
Calibration Signal Accuracy
±1.0% FSO. The exact signal to pressure correlation is provided with each unit
Circuit Protection
Varistor protected across the input leads for surges above 40V and currents to 250 Amps Peak with a pulse width of 20 µSec. Reverse polarity protected
Bridge Resistance
5K Ohms nominal
Insulation Resistance
≥200 MegOhms to case ground (≤5 nS)
RFI/EMI
Negligible to 500 MHz at 5 Watts direct contact
Electrical Connection
1/2” NPT (M), 18 AWG, 72”
Wire Color Codes
Red
+Power/Signal
Black
-Power/Signal
Green
Case Ground

Model 555 Pressure Transmitter

ShuntCal
All Stainless Steel construction

Mechanical
Pressure Connection
100 - 1000 PSI Flush Diaphragm
Proof Pressure
1.5 times URL
Burst Pressure
≥ 3 times rated URL
Shock Limitation
100 g's
Weight
70 oz (2kg)

Materials of Construction
Enclosure Materials
Inconel X750 and 316L stainless steel
Wetted Materials
Inconel X750 and 316L stainless steel
Enclosure Classification
NEMA/Type 4X (1P68)

Certifications
FM
Intrinsic Safety: Class I, II, III, Division 1, Groups A-G, and AEx ia IIC, T4 at Ta=80ºC, T5 at Ta=40ºC, Indoor and Outdoor NEMA/Type 4X Hazardous Locations
Nonincendive: Class I,II,III Div. 2, Groups A-G and Class I, Zone 2, Group IIC, T4 at Ta=80ºC, T5 at Ta=40ºC
CSA (Pending)
Intrinsic Safety: Class I, Div. 1, A-D Class II, E-G, Class III, Ex ia IIC T4 at Ta=80ºC, T5 at Ta=40ºC
ATEX
Intrinsic Safety: II 1 G EEx ia IIC, -20ºC T4, Ta 50ºC
CE
EMC Directive 89/336/EEC and Low Voltage Directive 72/23/EEC
EN 61010-101993/A2:1995: Low Voltage Standard
EN 61326: EMC Conformity Standard
PED Directive 97/23/EC EMC Directive 89/336/EEC

Options
BB
Mini change electrical connector
BP
Micro change electrical connector
CL
Extra lead length (6 ft standard)
DG
Improved temperature and compensation
DK
Special shunt calibration
EA
Special calibration run
NG
ATEX Flameproof label
NH
Customer specified identification
NJ
CE label
NK
ATEX Intrinsic Safety label
NSR
Non standard range
NX
CSA Intrinsic Safety label
NZ
FM Nonincendive label
TF
FM Intrinsic Safety label
TJ
CSA Div / Zone 2
TW
Russia Intrinsic Safety
VD
G2” retaining nut
Z ()
Alternate electrical connection
ZU
irect coupled cable

Accessories
Pipe Saddle with shutoff
Conduit connection box
Calibration text fixture
