Model 593 Detachable Level Transmitter

0-16" thru 335' WC, PUR Cable Standard, Stainless Steel Housing, Ceramic Sensor, Lowest Level Rating

Product Thumbnail

The Model 593 allows for a quick sensor swap without the removal of the installed polyurethane standard cable. PVC, TPE and FEP cables are also available. Sensor head and/or cable can be ordered separately. A complete range of accessories for use in level applications are available, many from stock.


Request a Quote

Features

Detachable
RoHS Compliant
IP-68 Rated
Low Pressure Applications


Product Selection

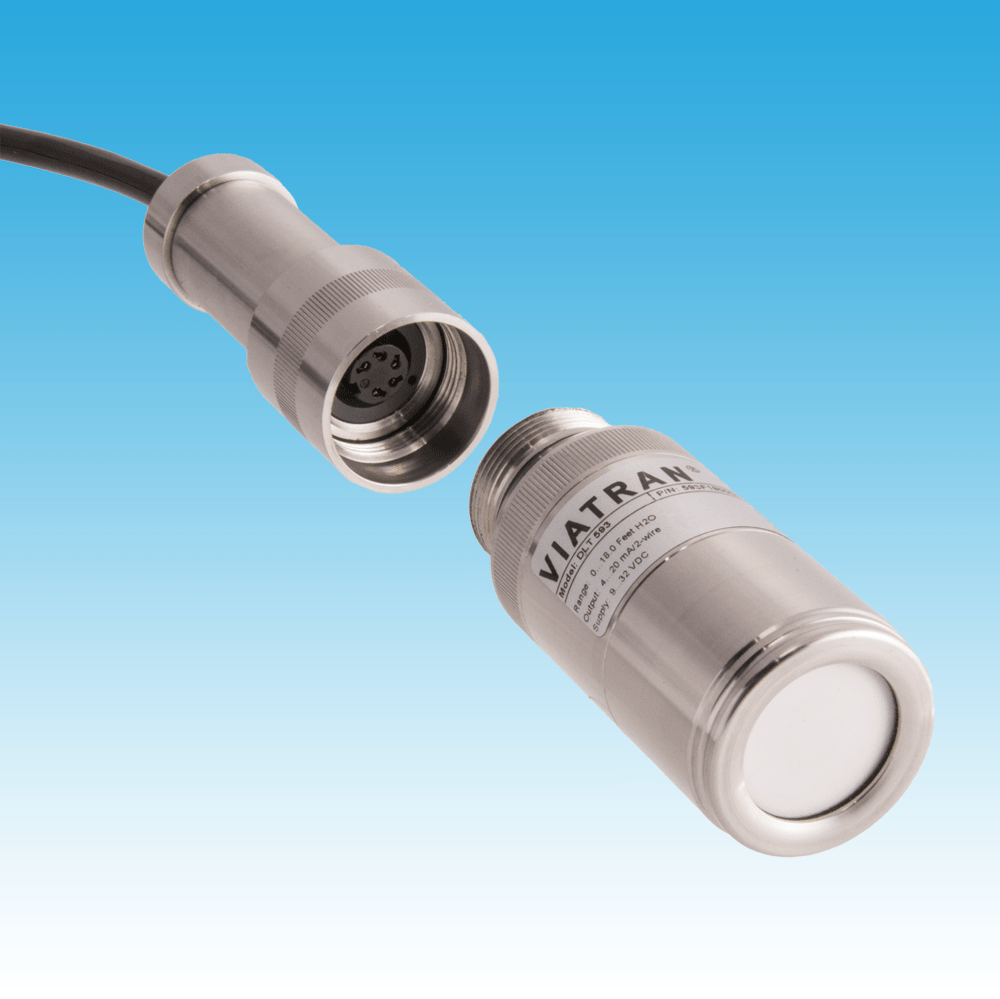

The Model 593 Detachable Level Transmitter allows for a quick sensor swap without the removal of the installed cable. No special tools are required. Simply pull up the sensor, twist the sensor coupling sleeve till it is no longer engaged and then simply separate the two halves.

593 is constructed of a 316L stainless steel housing and ceramic sensor module, with a polyurethane cable as standard.  Different cable materials and o rings are available.

Use it to measure Liquid Level and Depth for Water and Waste Water applications, at Lift Stations, Reservoirs and Dams, Rivers, Holding Ponds, Wells, In-ground / Above Ground Tanks and with Inventory Tank Gauging.

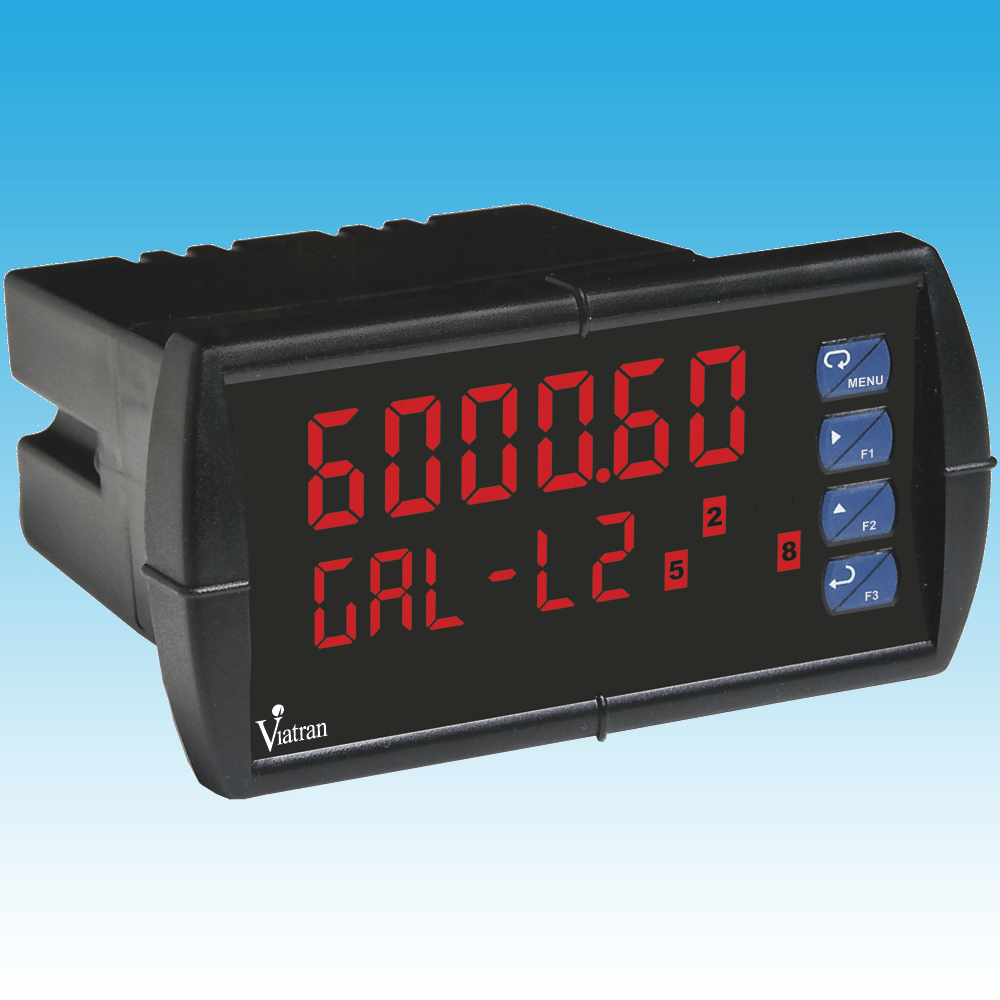

Viatran also offers a complete range of accessories for use in level applications such as a surge protector, cable hangers and weights, meters and junction boxes.

Replacement sensor heads and/or cables can be purchased separately

PERFORMANCE
Pressure Ranges
0 - 16" W.C. up to 0 - 335 Ft W.C. (Or equivalent in Meters or PSI)
Accuracy [Combined Non-Linearity (BFSL), Hysteresis & Repeatability]
≤ +/-0.35% FSO (Standard)
≤ +/-0.25% FSO (Optional)
Compensated Temperature Range
32° to 158° F (0 to 70° C)
Operating Temperature Range
-13° to 257° F (-25 to 125° C) Note: Medium must not freeze near sensor
Storage Temperature Range
-40° to 257° F (-40 to 125° C)
Long Term Stability (%FSO)
≤ +/- 0.1% FSO / year (At reference conditions)
Thermal Effect on Zero
≤ +/- 0.8% FSO per 100° F
Thermal Effect on Span
≤ +/- 0.8% FSO per 100° F
ELECTRICAL
Output Signal
4 - 20 mA
Supply Voltage
9 - 32 Vdc
Power Supply Regulation
< +/- .005% FSO per volt
Circuit Protection
Reverse polarity protected, CE marked
RFI / EMI
CE EMC compliant as per IEC EN 61326
Voltage Spike Protection
Withstand 1000 volt spike per EN 61000
Response Time
< 380 mSec
MECHANICAL
Pressure Connection
Removable Protective POM cap
Ingress Protection
IP 68
Overpressure Limit
6x Minimum (≥ 134 Ft. range = 3.5x)
Burst Pressure
1.4 lbs. (without cable)
Weight
1.4 lbs. (without cable)
MATERIALS OF CONSTRUCTION
Housing
316L stainless steel
Sensor Diaphragm
Ceramic Al2O3 96%
O-ring Seals
FKM (Standard) or EPDM (Optional)
Removable Protective Cap
POM (Polyoxymethylene)
OPTIONS
DV
EA
Special Calibration Run
PW
Calibrate Transmitter with Meter / Display
ZB
1/2" NPT Conduit Adapter
