Model 596 Detachable Level Transmitter

0-32" thru 0-335' WC, PUR Cable Standard, Stainless Steel Housing, Ceramic Sensor, RapidShip

Product Thumbnail

The Viatran Model 596 DLT is a submersible level transmitter specifically designed to meet the challenging demands of liquid measurement. The ability to detach the sensor can be an enormous time saver when or if it's ever needed.
Ranges can be set from 0-32 Inches W.C. to 0-335 Feet W.C. or equivalent in Meters or PSI by Viatran at the time of manufacturing This capability allows Viatran to rapidly ship the transmitter within one or two days. No need for you to carry excess inventory.

Features

Detachable
IP-68 Rated
RoHS Compliant


When you need to replace your wastewater level transmitter, you don’t have time to wait. Downtime is not an option. With Viatran’s new RapidShip program, the Model 596 Detachable Level Transmitter is available in as little as one 1 to 2 days, and in some cases can be shipped overnight.
The RapidShip program allows you to reduce your inventory costs, minimize your supply chain management effort, eradicate unexpected delays and/or line down situations resulting from peaks in demand.

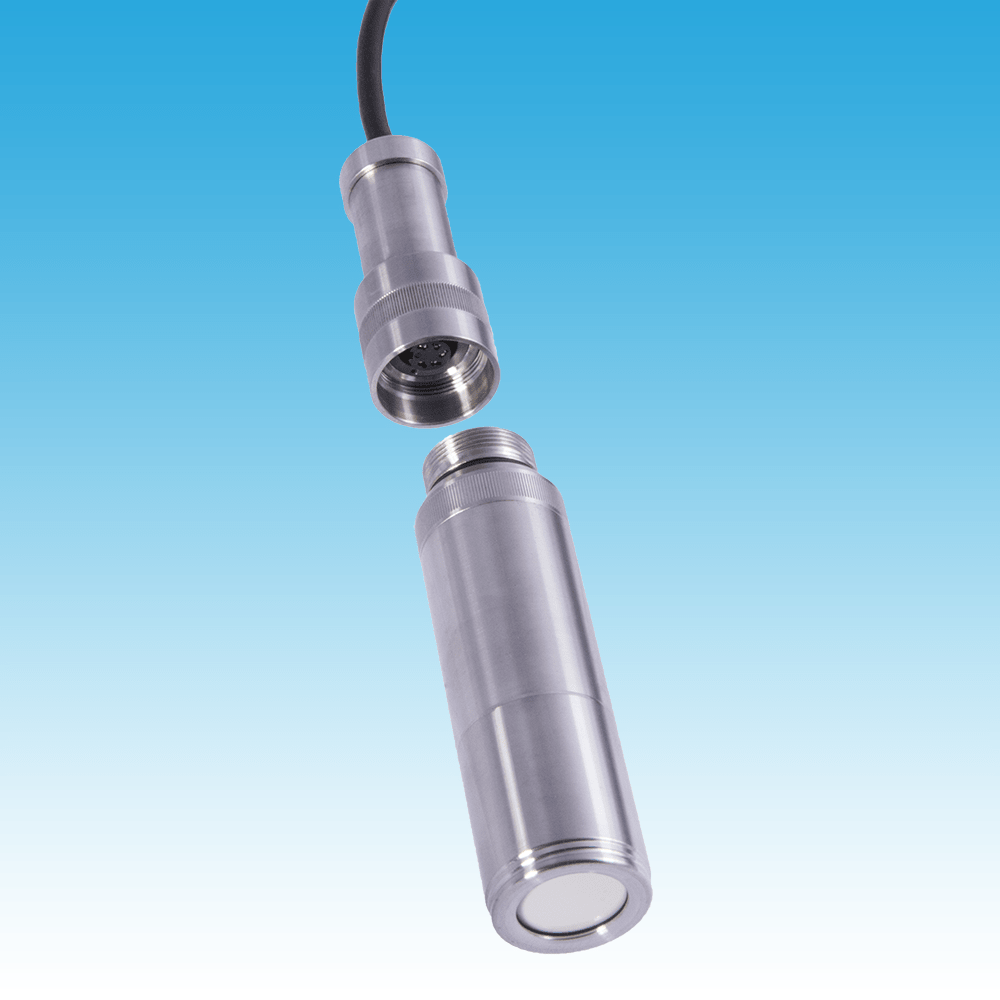

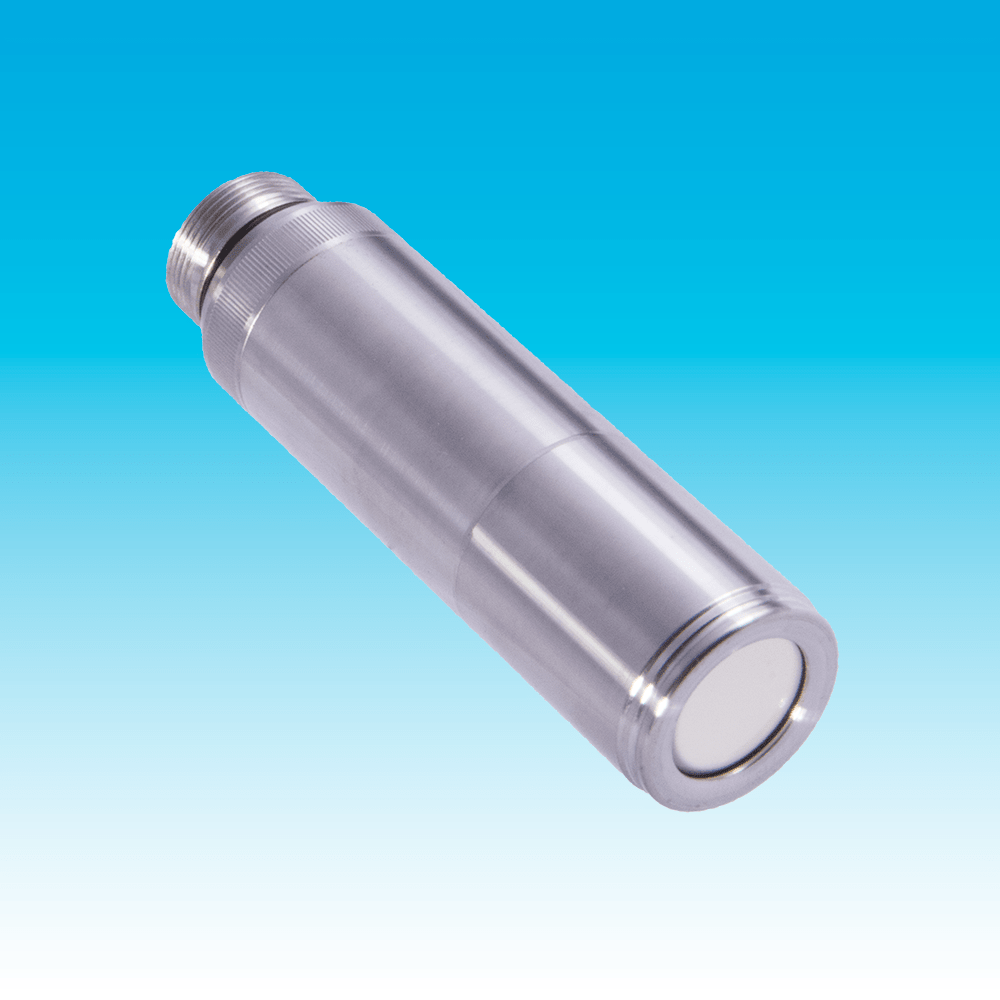

The Detachable Level Transmitter allows for a quick swap of the sensor head without having to remove your entire cable run. Model 596 is a rugged transmitter that is ideal for higher viscosity media and is resistant to a wide variety of materials. Its semi-flush ceramic sensing face resists clogging and is easily cleaned, allowing it to be used without a cage.

This model can operate in pressure ranges from 0-32 in. w.c. to 0-335 ft. w.c. (or equivilent in meters or PSI )and an operating temperature range of -13° to 185° F (-25° to 85° C). Viatran also stocks six of the most popular polyurethane cable sizes in lengths up to 150 feet (46 meters). When ordering, please specify the range (depth) and cable length needed.

Performance
Standard Pressure Range
0-32" W.C. to 0-335 Feet W.C. or equivalent in Meters or PSI.
Accuracy
≤ +/-0.1% FSO [Combined Non-Linearity (BFSL), Hysteresis & Repeatability]
Compensated Temperature Range
-4° to 176° F (-20 to 80° C)
Operating Temperature Range
-13° to 185° F (-25 to 85° C) Note: Medium must not freeze near sensor
Storage Temperature Range
-13° to 185° F (-25 to 85° C)
Long Term Stability (%FSO)
≤ +/- 0.1% FSO / year Note: At reference conditions
Thermal Effect on Zero
≤ +/- 0.16% FSO per 100° F
Thermal Effect on Span
≤ +/- 0.16% FSO per 100° F
Electrical
Output Signal
4-20 mA
Supply Voltage
12-36 Vdc
Power Supply Regulation
< +/- .005% FSO per volt
Circuit Protection
Reverse polarity protected, CE marked
RFI / EMI
CE EMC compliant as per IEC EN 61326
Voltage Spike Protection
Withstand 1000 volt spike per EN 61000
Response Time
< 380 mSec
Mechanical
Pressure Connection
Removable Protective POM cap
Ingress Protection
IP 68
Overpressure Limit
5x Minimum (≥ 167 Ft. range = 3.5x)
Weight
1.4 lbs. (without cable)
Materials of Construction
Housing
316L Stainless Steel
Sensor Diaphragm
Ceramic Al2O3 96%
O-ring Seals
FKM (Standard) or EPDM (Optional)
Removable Protective Cap
POM (Polyoxymethylene)
Options
EA
Special Calibration Run
NSR
Non-Standard Range
PW
Calibrate Transmitter with Meter / Display
ZB
1/2" NPT Conduit Adapter

Model 596 Detachable Level Transmitter

Product Thumbnail

Model 596 Detachable Level Transmitter

0-32" thru 0-335' WC, PUR Cable Standard, Stainless Steel Housing, Ceramic Sensor, RapidShip

The Viatran Model 596 DLT is a submersible level transmitter specifically designed to meet the challenging demands of liquid measurement. The ability to detach the sensor can be an enormous time saver when or if it's ever needed.
Ranges can be set from 0-32 Inches W.C. to 0-335 Feet W.C. or equivalent in Meters or PSI by Viatran at the time of manufacturing This capability allows Viatran to rapidly ship the transmitter within one or two days. No need for you to carry excess inventory.

Performance
Standard Pressure Range
0-32" W.C. to 0-335 Feet W.C. or equivalent in Meters or PSI.
Accuracy
≤ +/-0.1% FSO [Combined Non-Linearity (BFSL), Hysteresis & Repeatability]
Compensated Temperature Range
-4° to 176° F (-20 to 80° C)
Operating Temperature Range
-13° to 185° F (-25 to 85° C) Note: Medium must not freeze near sensor
Storage Temperature Range
-13° to 185° F (-25 to 85° C)
Long Term Stability (%FSO)
≤ +/- 0.1% FSO / year Note: At reference conditions
Thermal Effect on Zero
≤ +/- 0.16% FSO per 100° F
Thermal Effect on Span
≤ +/- 0.16% FSO per 100° F

Electrical
Output Signal
4-20 mA
Supply Voltage
12-36 Vdc
Power Supply Regulation
< +/- .005% FSO per volt
Circuit Protection
Reverse polarity protected, CE marked
RFI / EMI
CE EMC compliant as per IEC EN 61326
Voltage Spike Protection
Withstand 1000 volt spike per EN 61000
Response Time
< 380 mSec

Model 596 Detachable Level Transmitter

Detachable
IP-68 Rated
RoHS Compliant

When you need to replace your wastewater level transmitter, you don’t have time to wait. Downtime is not an option. With Viatran’s new RapidShip program, the Model 596 Detachable Level Transmitter is available in as little as one 1 to 2 days, and in some cases can be shipped overnight.
The RapidShip program allows you to reduce your inventory costs, minimize your supply chain management effort, eradicate unexpected delays and/or line down situations resulting from peaks in demand.
The Detachable Level Transmitter allows for a quick swap of the sensor head without having to remove your entire cable run. Model 596 is a rugged transmitter that is ideal for higher viscosity media and is resistant to a wide variety of materials. Its semi-flush ceramic sensing face resists clogging and is easily cleaned, allowing it to be used without a cage.

This model can operate in pressure ranges from 0-32 in. w.c. to 0-335 ft. w.c. (or equivilent in meters or PSI )and an operating temperature range of -13° to 185° F (-25° to 85° C). Viatran also stocks six of the most popular polyurethane cable sizes in lengths up to 150 feet (46 meters). When ordering, please specify the range (depth) and cable length needed.

Mechanical
Pressure Connection
Removable Protective POM cap
Ingress Protection
IP 68
Overpressure Limit
5x Minimum (≥ 167 Ft. range = 3.5x)
Weight
1.4 lbs. (without cable)

Materials of Construction
Housing
316L Stainless Steel
Sensor Diaphragm
Ceramic Al2O3 96%
O-ring Seals
FKM (Standard) or EPDM (Optional)
Removable Protective Cap
POM (Polyoxymethylene)

Options
EA
Special Calibration Run
NSR
Non-Standard Range
PW
Calibrate Transmitter with Meter / Display
ZB
1/2" NPT Conduit Adapter
