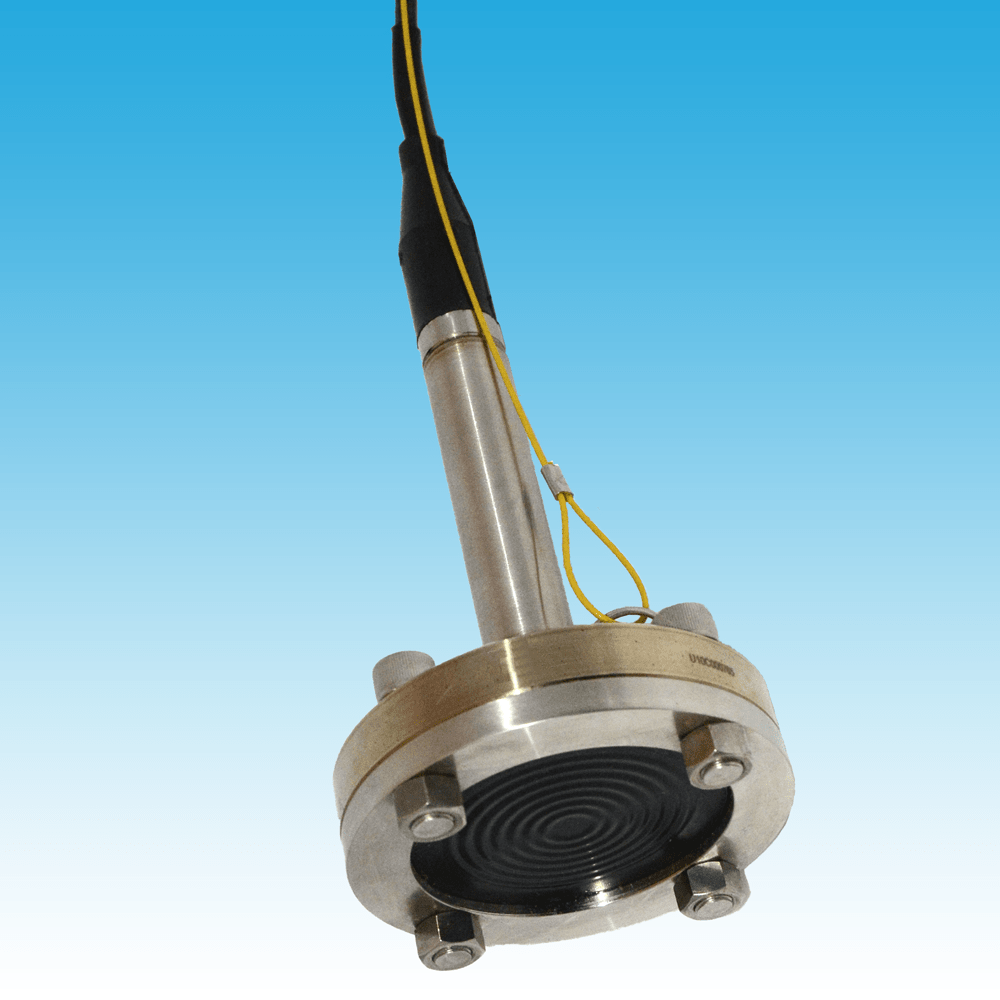

Model WW517 Pressure Transducer

Waste water, Non-Clogging Design, Hazardous Approvals option

Product Thumbnail

Waste water level sensor with design that prevents clogging. Hazardous location approval option, 3" Teflon coated diaphragm open face design which helps to prevents clogging. 316 stainless steel body. Integrated cable support loop to support the body. Optional baffle plate to provide increase stability and protection of the sensor. Kevlar reinforced cable prevents cable damage as a result of repeated removal.


Request a Quote

Features

Many Options available
All Stainless Steel construction
Low Pressure Applications


Product Selection


Performance
Full Scale Pressure Range (FSPR)
0-3, 5, 10, 15, 30, 50, 100, 200, 300, 500 PSI
0-7, 12, 23, 35, 69, 115, 230, 462, 693, 1154 feet of WC
Combined Accuracy (Non-Linearity, Hysteresis, Repeatability)
≤±0.1% FSO typical (±0.25% FSO max)
Full Scale Output (FSO)
16 mA
Resolution
Infinite
Zero Balance
4 mA ±0.25%FSO
Long Term Stability
≤±0.20% FSO per 6 months
Temperature Effect on Zero
≤±2.0% 50°F (10°C)
Temperature Effect on Span
≤±2.0% 100°F (37°C)
Compensated Temperature Range
40°F to 120°F (4°C to 48°C)
Operating Temperature
20°F to 185°F (-7°C to 85°C)
Storage Temperature Range
20°F to 200°F (-7°C to 93°C)
Electrical
Supply Voltage
9 to 30 Vdc
Power Supply Regulation
≤±0.0001% per Volt
Output Signal
4 to 20 mA
Maximum Load Resistance
≤1050Ω maximum @ 30 Vdc
Circuit Protection
Reverse polarity protected. Over-voltage protected to 1000V <50 mSec duration
Electrical Connection
3 wire, 22 AWG
Wiring Color Codes
Red
+Power/Signal
Black
-Power/Signal
Bare
Case ground
Mechanical
Pressure Connection
2.9” flush sensing diaphragm (Teflon coated)
Proof Pressure
3 times rated range
Burst Pressure
5 times rated range
Diameter
4 inches O.D.
Weight
24 OZ
Cable Weight
7 lbs per 1000 feet (polyurethane)
Materials of Construction
Housing
316L stainless steel
Pressure Connection Sensor
316L stainless steel
Sensor
316 stainless steel, Teflon coated
Cable Options
Polyurethane, Tefzel
Identification
Laser etched onto body
Cable Strength
Poly Wire - 30 lbs; Support Line - 100 lbs
Options
DH
Special range
EA
Special calibration run
NH
Customer specified identification
NR
Alternate protection baffle plate with weight hook (max weight 2 lbs)
TG
CSA and FM Intrinsically Safe design
Note:
Application of some available options may affect standard performance. Consult your Viatran Representative for details.
