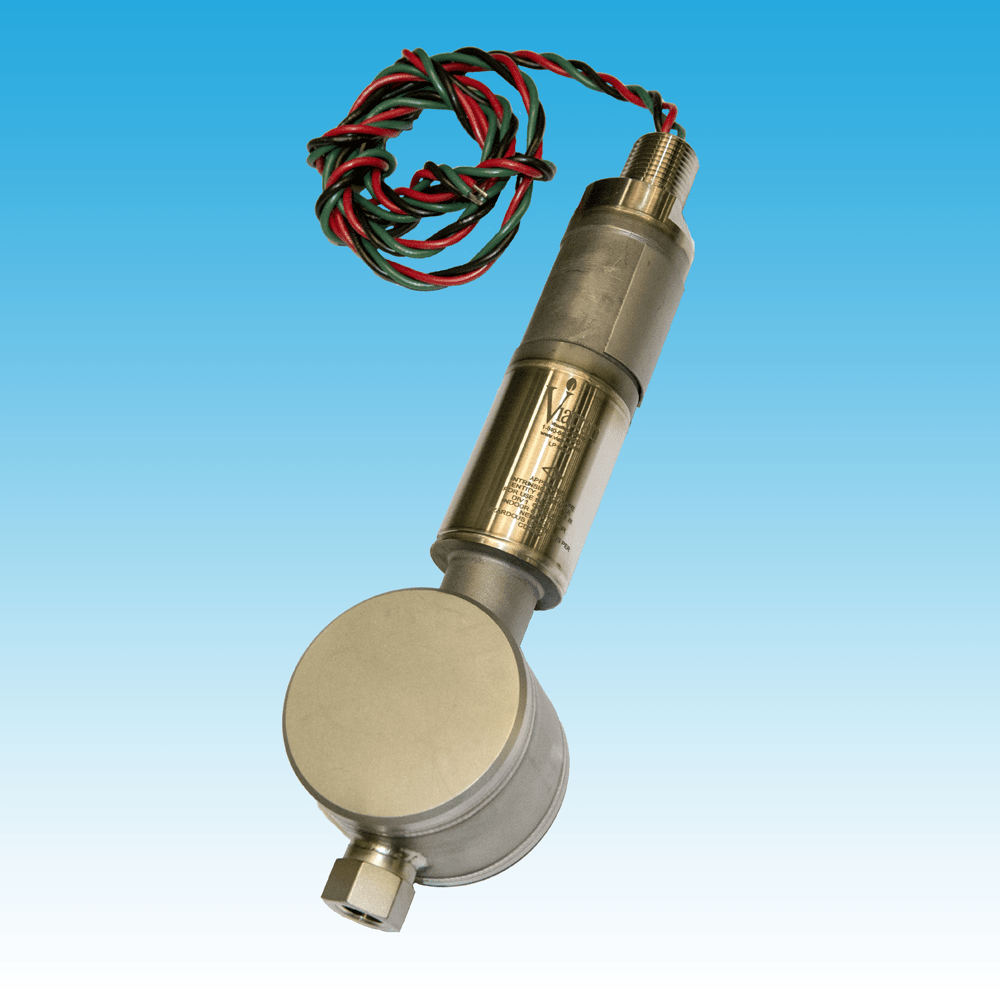

Model 570 Pressure Transmitter
4-20 mA, 0-100 psi thru 100K psi, Hazardous Approvals
570 provides a rugged, sealed solution for hazardous rated and harsh environments.
Request a Quote
Features
Many Options available
All Stainless Steel construction
IP-68 Rated
ShuntCal
High Pressure Applications
All welded construction and stainless steel surfaces makes the 570 ideal for corrosive environments. The transmitters O-ring free design ensures reliability with corrosive media. Viatran’s 570 FM approved labelled units are designed to meet NEC/API Dual Seal requirements. For the most corrosive environments, Hastelloy, Inconel, and 316 SS wetted parts are available.
Performance
Full Scale Pressure Range
0-100 thru 0-100K PSIS (0-6.89 thru 0-6894 bar)
Accuracy (RSS)
(BFSL Non-Linearity, Hysteresis, Non-Repeatability)
0-300 PSI thru 0-15K PSI Ranges
±0.20% FSO ( ±0.15% FSO improved with "DN" option)
< 0-300 PSI or > 0-15K PSI Ranges
±0.25% FSO ( ±0.15% FSO improved with "DN" option)
Linearity (Best Fit Straight Line)
0-300 PSI thru 0-15K PSI Ranges
±0.10% FSO (BFSL), Typical
< 0-300 PSI or > 0-15K PSI Ranges
±0.15% FSO (BFSL), Typical
Hysteresis
< ± 0.05% FSO, Typical
Repeatability
< ± 0.05% FSO, Typical
Full Scale Output (FSO)
16 mA
Zero and Span Balance
±1% FSO
Long Term Stability
≤±0.25% FSO per 6 months
Response Time
<2 mSec to reach 90% FSO
Temperature Effect on Zero
≤±1% FSO per 100°F (37°C)
Temperature Effect on Span
≤±1% FSO per 100°F (37°C)
Compensated Temperature
70°F to 170°F (21°C to 76°C)
Operating Temperature
-40°F to 190°F (-40°C to 87°C)
Storage Temperature Limit
-65°F to 250°F (-53°C to 121°C)
Electrical
Supply Voltage
12 to 30 Vdc
Power Supply Regulation Effect
≤±0.02% FSO per Volt
Output Signal
4 - 20 mA
Bridge Impedance
5000 Ohms nominal
Circuit Protection
Varistor protected across the input leads for surges above 40 V and currents to 250 Amps peak with a pulse width of 20 μSecs. Reverse polarity protected.
Insulation Resistance
>200 MegOhms to case ground
Electrical Connection
1/2" NPT (M), 18 AWG wire, 72"
Wire Color Codes
Red
+Power/Signal
Black
-Power/Signal
Green
Case ground
White
No Connection
Mechanical
Pressure Connection
0-50 thru 0-15K PSI
1/4" - 18 NPT Female (0-3.3 thru 0-1034 bar)
0-20K thru 0-50K PSI
1/4" F250-C High Pressure Tube (0-1378 thru 0-3447 bar)
0-60K thru 0-100K PSI
5/16" F312C High Pressure Tube (0-4136) thru 0-6894 bar)
Proof Pressure
0-100 thru 0-15K PSI
1.5 times FSPR or 20K PSI (1378 bar), (0-6.8 thru 0-1034 bar) whichever is less
0-20K thru 0-100K PSI
1.2 times FSP (0-1378 thru 0-6894 bar)
Burst Pressure
0-100 thru 0-15K PSI
≥ 2.3 to 5 times FSPR dependent on (0-6.8 thru 0-10342 bar) sensor
0-20K thru 0-100K PSI
1.5 times FSPR or 125K PSI (8618 bar) (0-1378 thru 0-6894 bar) whichever is less
Mounting
Supported by process piping or optional mounting bracket
Materials of Construction
Enclosure
0-100 thru 0-15K PSI
15-5 PH and 316 stainless steel (0-6.8 thru 0-1034 bar)
0-20K thru 0-100K PSI
316 SST and PH 13-8 Mo SST (0-1378 thru 0-6894 bar)
Wetted Parts
0-100 thru 0-15K PSI
15-5 PH stainless steel (0-6.8 thru 0-1034 bar)
0-20K thru 0-100K PSI
PH 13-8 Mo SST (0-1378 thru 0-6904 bar)
Shock Limitation
100 G’s
Weight
24 oz. (0.680 kilograms)
Identification
Laser etched onto body
Enclosure
Classification NEMA 4X
Options
DF
Bleed port (10K PSI and below)
DG
Improved temperature compensation (<± 0.5% FSO/100°F for zero/span)
DH
Special range
DN
Improved Accuracy (±0.15% FSO)
DQ
Cleaning for oxygen service
EA
Special calibration run
JJ
Direct mount indicator with explosion proof housing
JS
Direct mount indicator
KN
IECEx flameproof label
ME
CSA explosion proof label
MR
Modified electrical damping
NG
ATEX flameproof label
NH
Customer specified identification
NJ
CE label
NK
ATEX intrinsic safety label
NX
CSA intrinsic safety label
NY
FM explosion proof label
NZ
FM nonincendive label
PW
1/8 DIN digital indicator (consult factory)
QA
316 stainless steel wetted parts
QB
Inconel (X-750) wetted parts
QC
Hastelloy (C-276) wetted parts
TF
FM intrinsic safety label
Y ( )
Alternate pressure ports
Note:
Application of some available options may affect standard performance. Consult your Viatran Representative for details.
